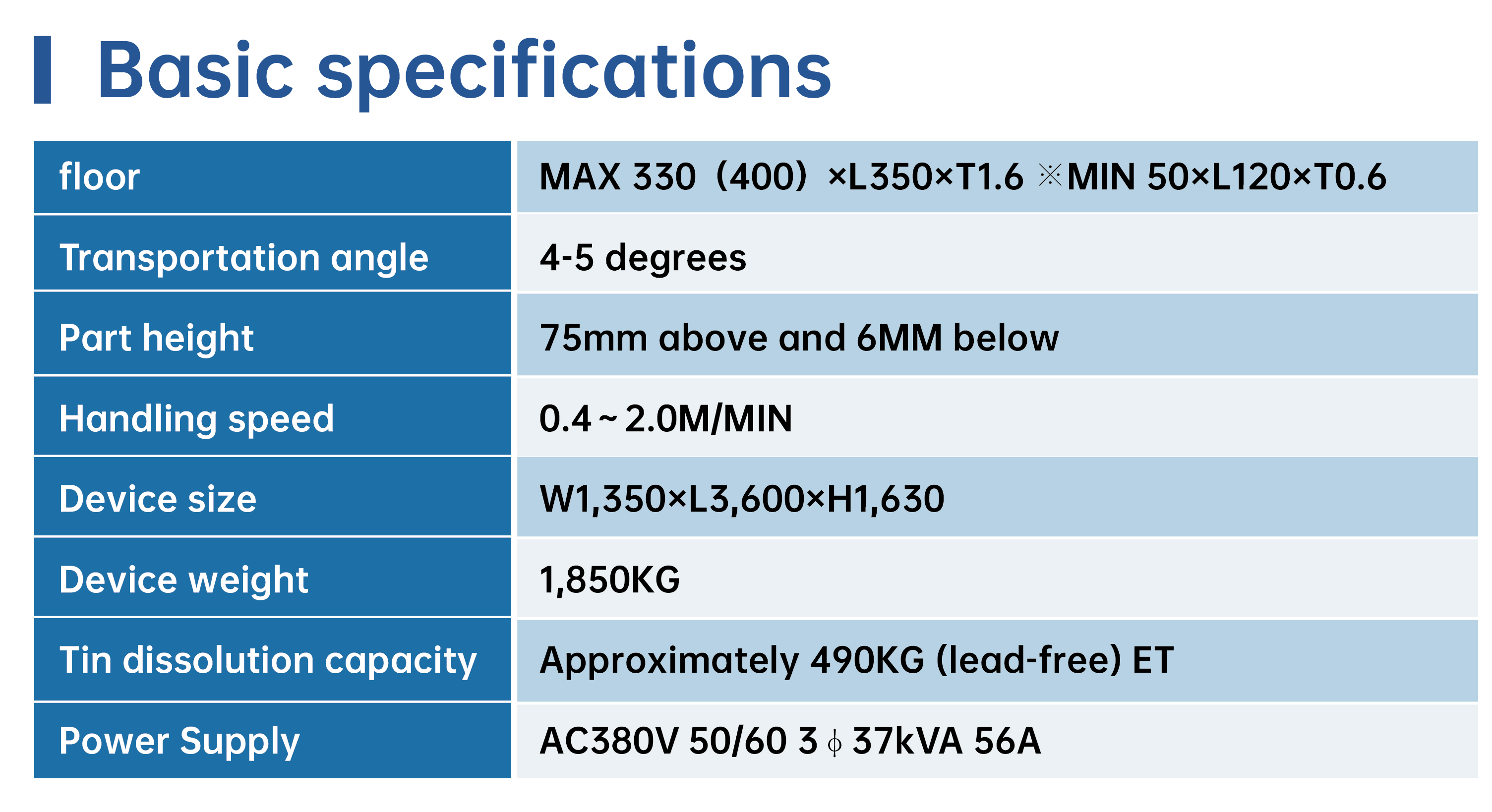

Basic specifications (specifications: corresponding to 400 pieces)

Detailed specification information

Standard Department

• Automatic lifting and pulling out of soldering tank

• Export connection station

• FLUX smoke and dust recovery unit

• Select 3 or 4 rows of nozzles once

• Oxygen concentration meter

• Entrance connecting table chain

• Export connection table belt type

• Conveyor claws, heat-resistant resin

• Interior lighting

• Water cooling unit

OP option

• CO2 fire extinguisher

• Automatic adjustment of track width

• Cooling fan for export docking station

• Substrate anti bending device (blade type)

• Paint color

• Additional preheating area at the entrance

• Pre soldering tank

Fold structure

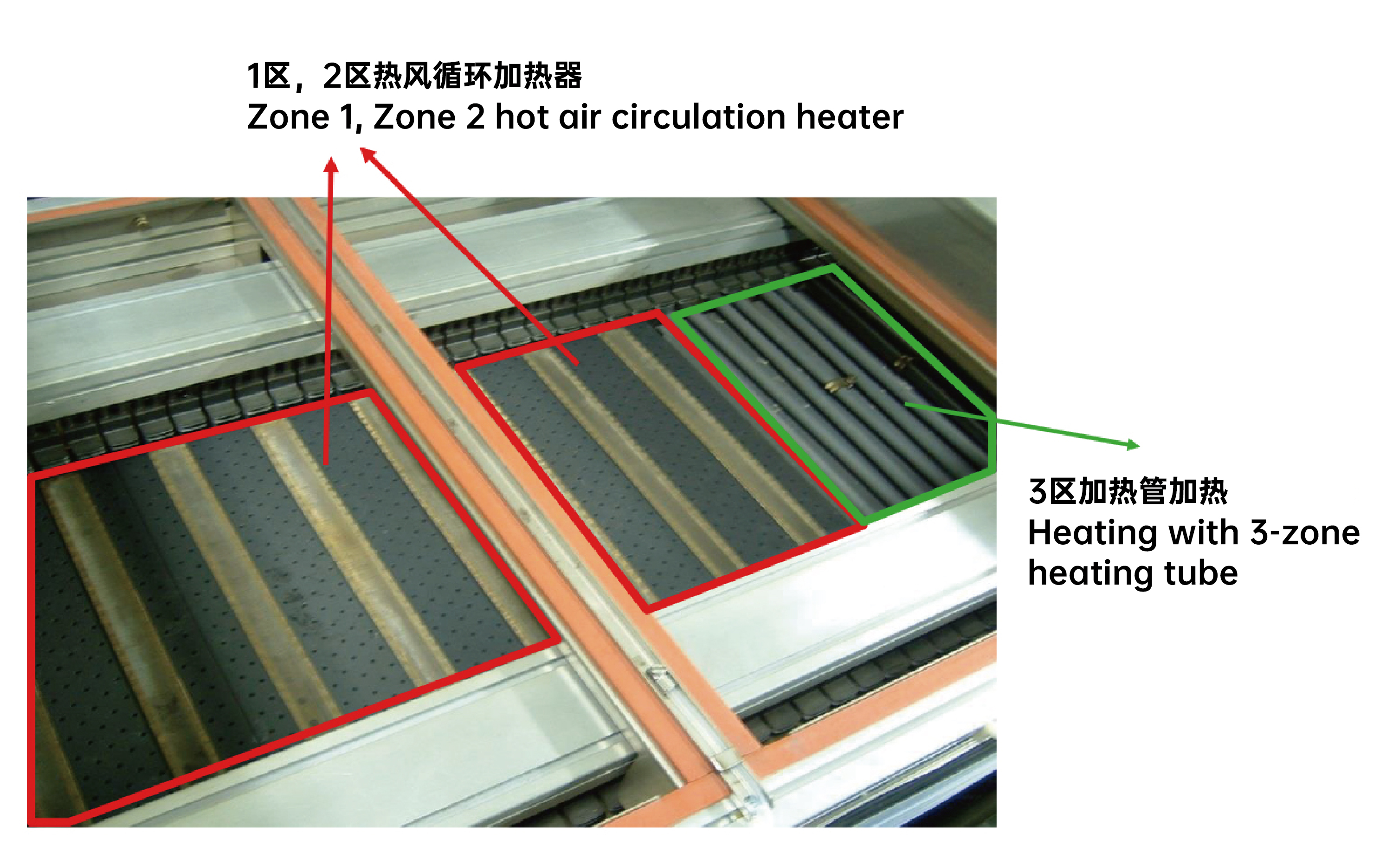

Exploration of hot air circulation heater

• Uniform preheating

• Water soluble FLUX supporting VOC

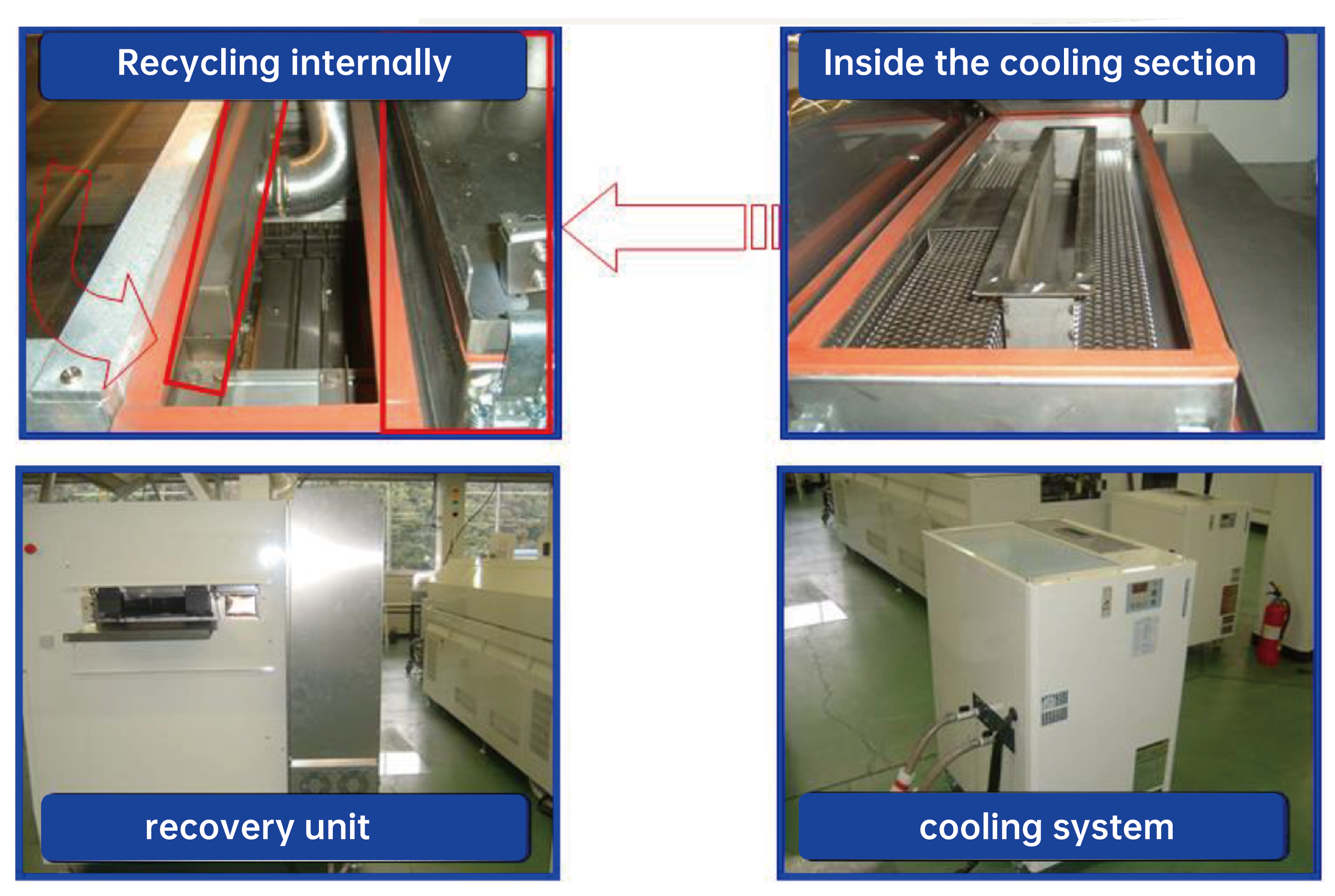

Photo of the smoke and dust recovery department in the cooling section after welding groove

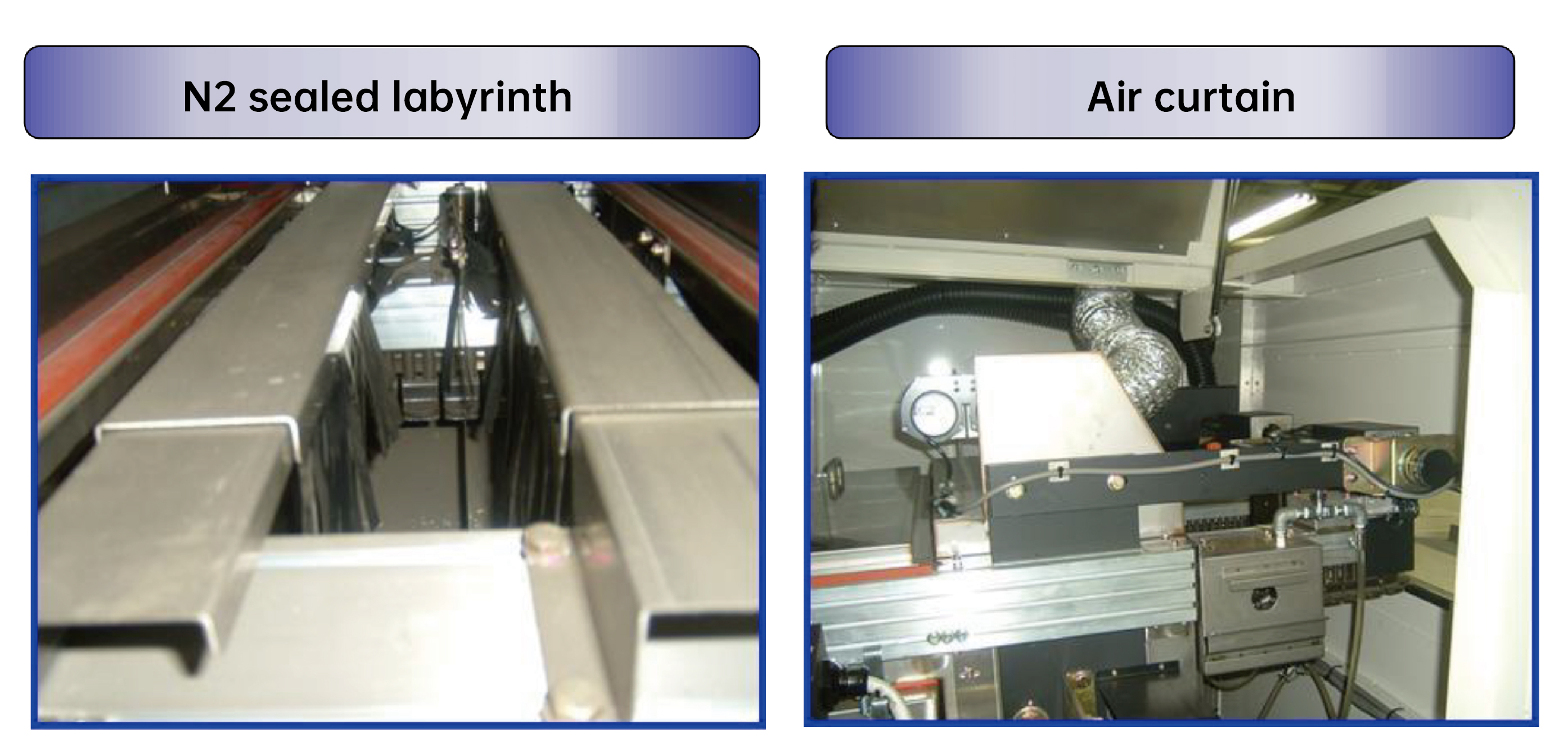

N2 Sealed Maze Section · Air Curtain Photo

Prevent N2 leakage on the export side

Oxygen concentration meter, jet frequency meter

On the operation screen, it can be confirmed that the oxygen concentration (on the welding groove) and the concentration control flow can stably supply nitrogen N2

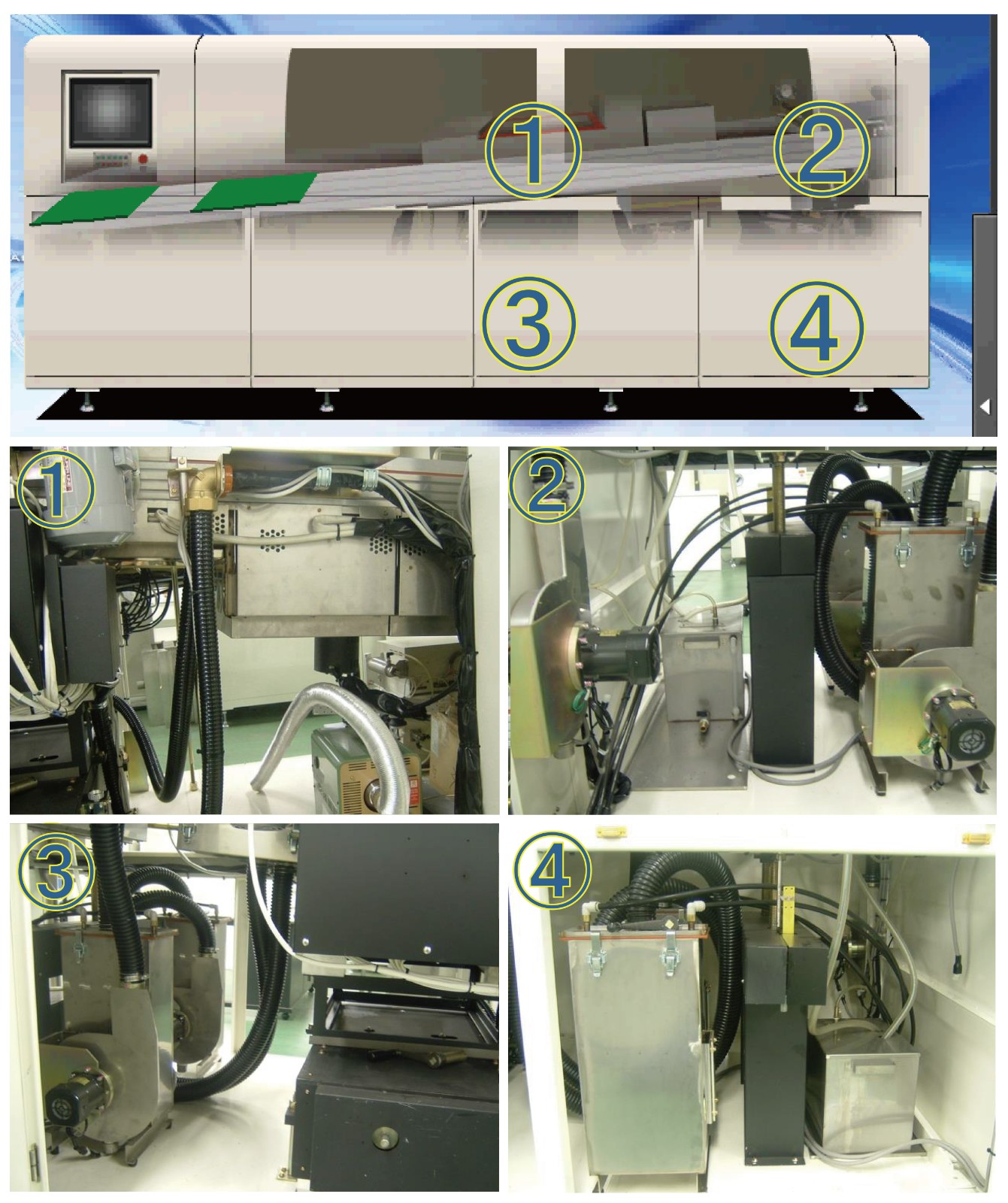

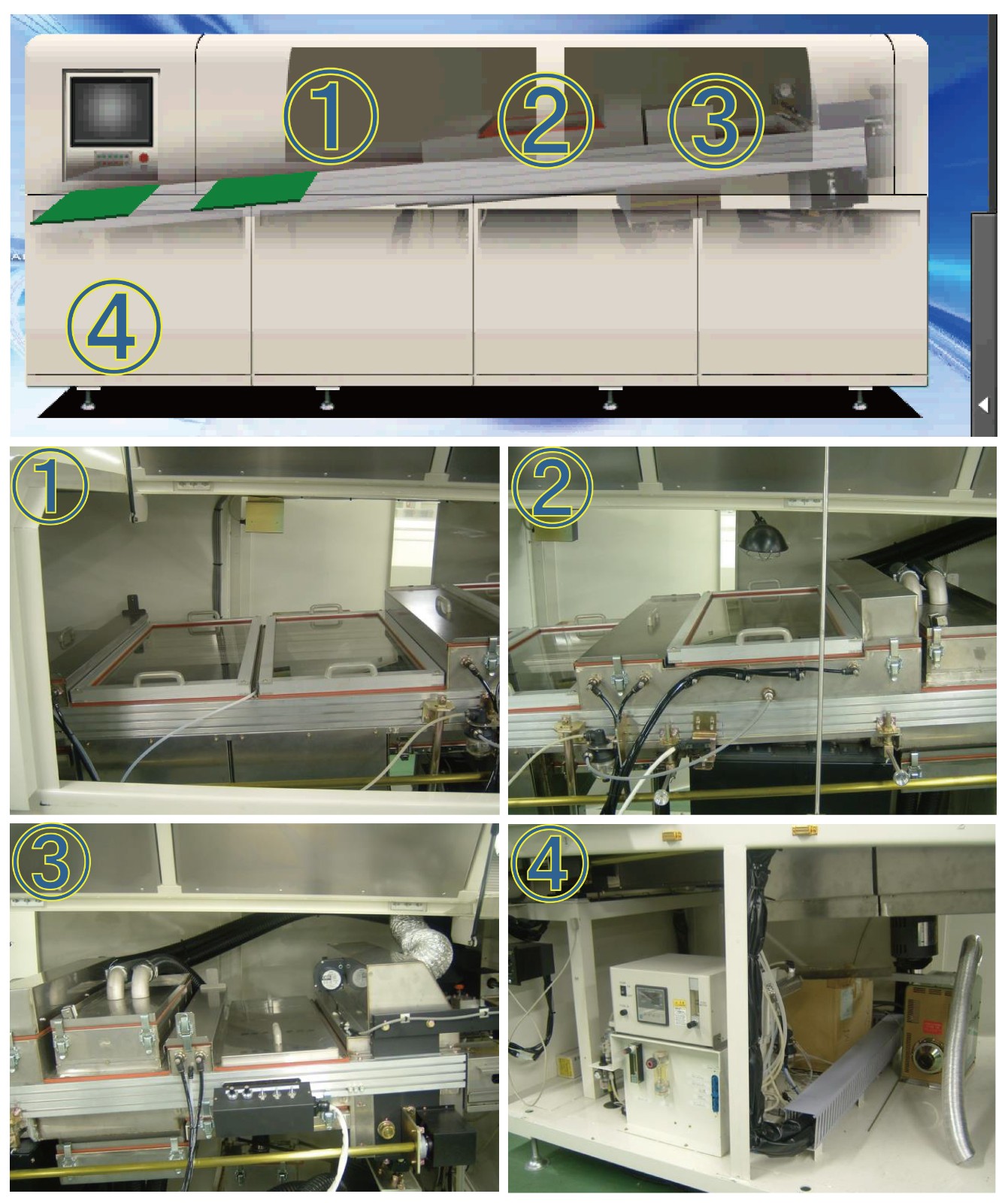

Photos of each department

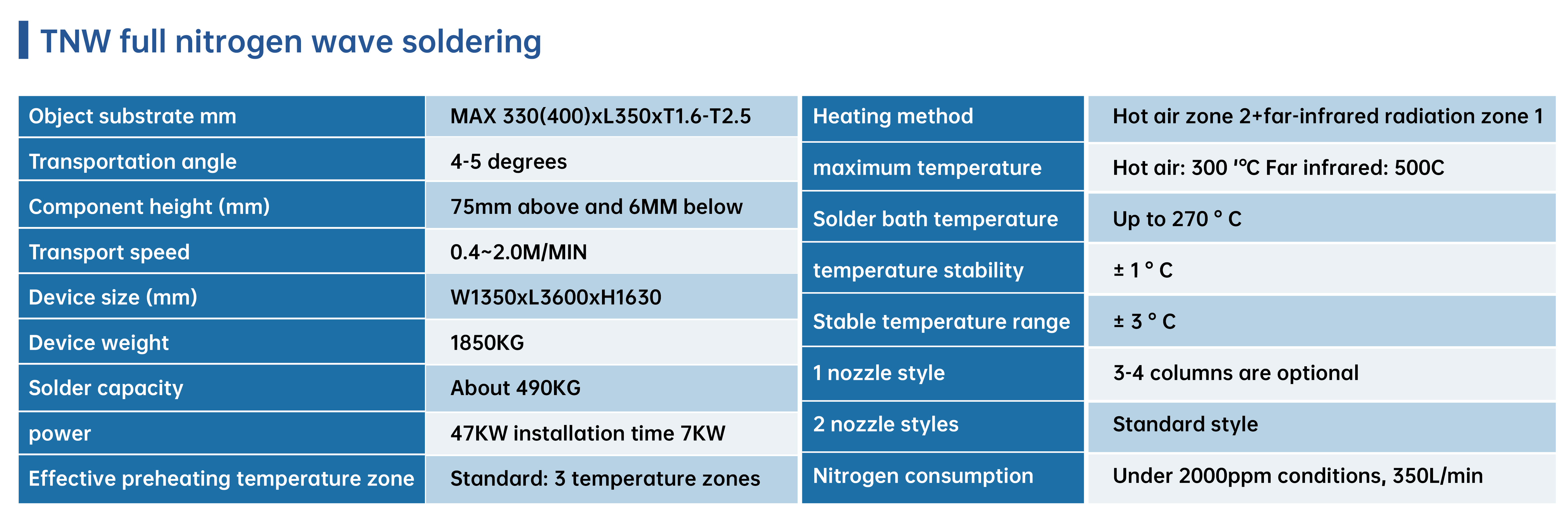

Product parameters
