1. Flexibly respond to the production of various products

• In the temperature adjustment system created by Tamura, the temperature change time during product switching is significantly reduced.

• One specification can correspond to a substrate with a maximum width of 510mm.

• The number of cooling zones can be optionally selected to help customers correspond to various choices.

2. Preventive shutdown function

Tamura's unique sensing system can sense the dirtiness of the soldering flux and notify you of the appropriate maintenance time in advance, which can prevent the sudden shutdown of the production line.

3. Utilize IOT (BIG DATA) for device management

• Standardization of automatic settings and traceability.

4. Automatic supply of lubricating grease function

• Support automatic grease coating device.

5. Dealing with the risk of metal foreign objects

• Supporting the use of non-conductive material rails can effectively prevent the generation of metal shavings and reduce the risk of metal foreign objects.

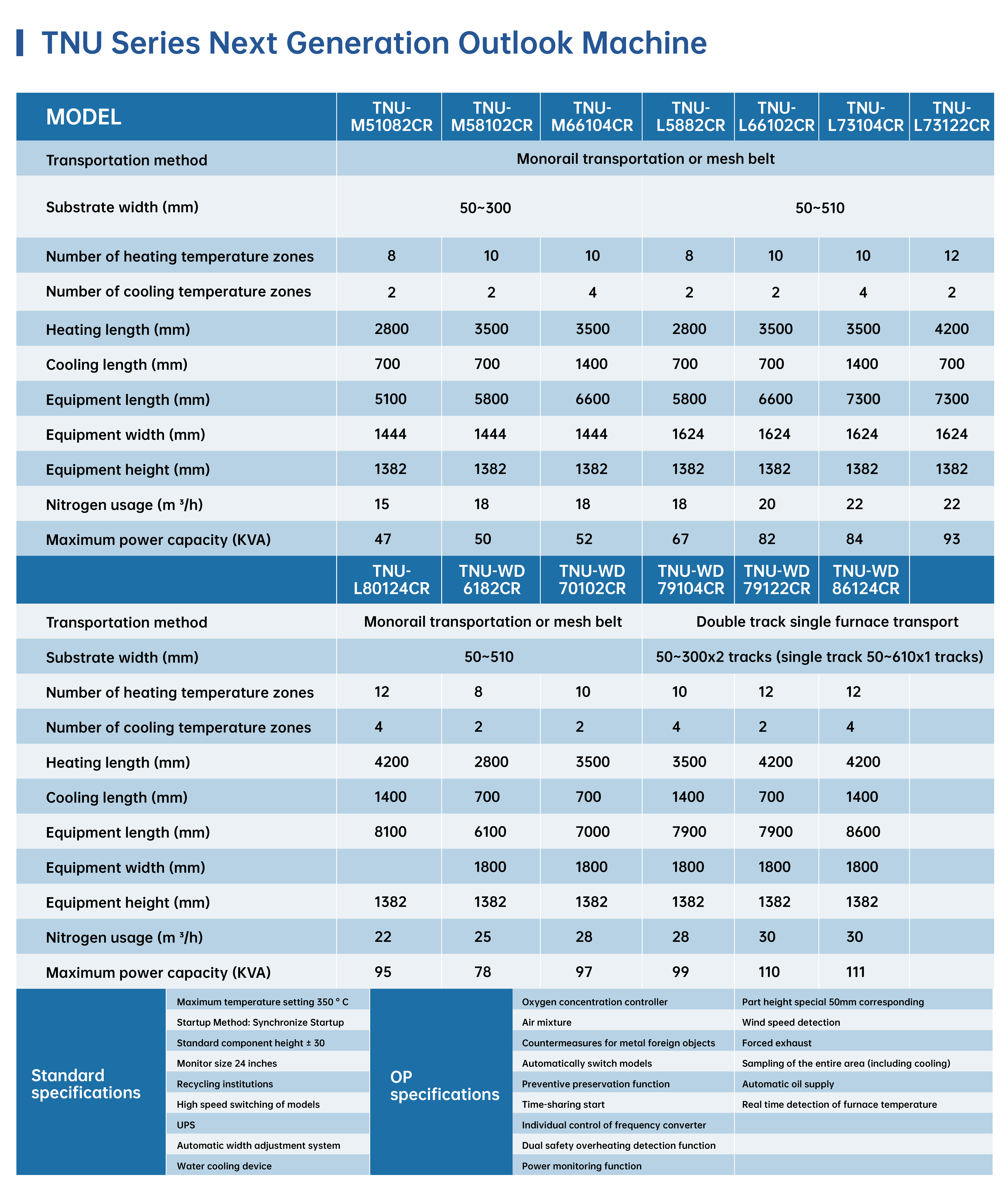

Product Parameters
